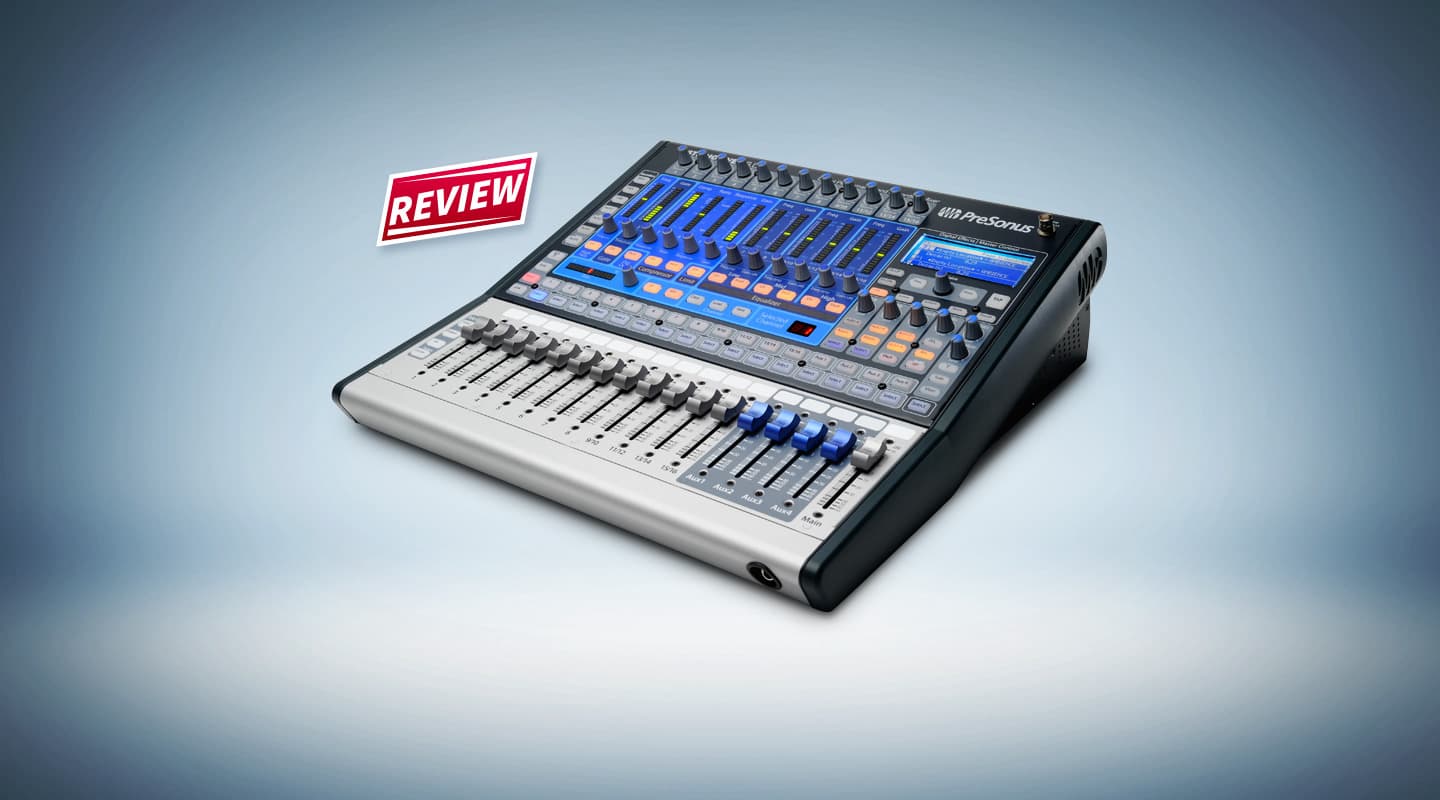

Review: PreSonus StudioLive 16.0.2

The PreSonus 16.0.2 StudioLive mixer is narrowing the boundaries between what is deemed worth a digital console and the, “what the hell, it’s only one microphone” basic setup we often encounter.

By

19 February 2012

Review: Graeme Hague

The PreSonus 16.0.2 StudioLive mixer is narrowing the boundaries between what is deemed worth a digital console and the, “what the hell, it’s only one microphone” basic setup we often encounter. The StudioLive is small, relatively easy to operate and cost-efficient, and still offers many of the advantages of an expensive digital mixer. So what’s the hold-up? Why wouldn’t you be chucking all those cheap, analogue mixers in the bin?

The problem is still all about that dreaded concept of things being ‘intuitive’. Plonk any reasonable technician behind a small, analogue mixer and they’ll quickly figure out how to fudge some noise out of the FOH. Do the same with any digital console and things may get a bit messy. The challenge for digital console designers in the smaller format market is to make things easy to achieve and obvious to the untrained (and not so untrained) eye. That is, to make digital console technology accessible to everyday users. Has PreSonus managed this?

BIG LITTLE DESK

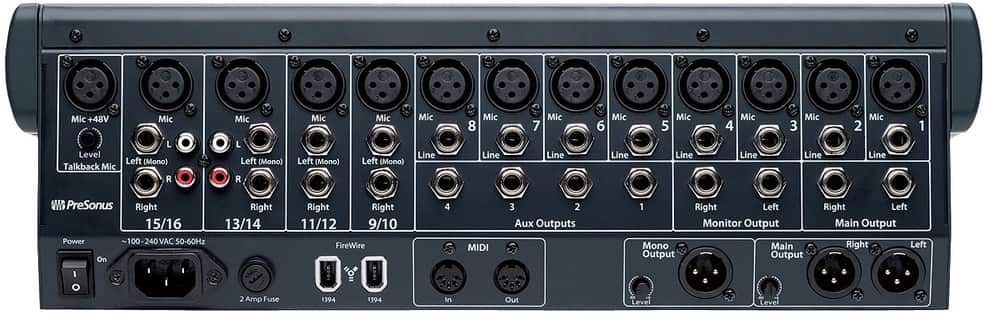

Some brass tacks stuff first. The 16.0.2 StudioLive (not to be confused with the older/bigger 16.4.2 or 24.4.2 StudioLives) has 12 mono XLR preamp inputs and the last four of these channels are capable of taking stereo signals thanks to pairs of TRS balanced inputs. The built-in DSP, which provides a high-pass filter, noise gate, compressor, limiter and three-band parametric EQ, can be applied to everything: every individual channel, each of the aux buses and the master output. FX returns can be sent to the auxiliary channels (providing reverb in a foldback send for example) but not at separate levels – it’s either in all the aux sends or none – an issue that has caused some angst on the PreSonus forums. Some folks are never happy, but they may have a point on this occasion – among all the 16.0.2’s cleverness it’s an odd glitch. There is also a 31-band graphic equaliser that can be applied across the master outputs.

SLIGHTLY OBESE CHANNEL

The controls for all of these parameters come via a ‘fat channel’ that dominates the console’s real estate above the faders. Twelve rotary encoders handle most of the input values and double as sends levels for FX and auxiliary busses. It’s the standard approach to digital mixers with the one set of encoders all focused on the DSP parameters for the channel (or bus) you’ve selected. What’s different here is that PreSonus has opted to display values for each fat channel control using 16-bar vertical LED meters, rather than some kind of central, large LCD screen – there is a small LCD showing preset information, FX values and the like, but it’s certainly a ‘look close and squint’ LCD screen, not something you want to refer to in a hurry. The LED meters are another thing altogether. For example, the mid frequency range is shown spread between 260Hz and 3.5kHz over 16 increments and the cut/gain level is plus or minus 15dB in 2dB steps (for those clever bastards doing the maths, don’t forget 0dB in the centre). These aren’t detent values, the EQ does sweep through the entire frequency spectrum, and the gain is a constant variable as well. It’s only the LED bars that will eventually click over from one to the next. Likewise, all the compressor settings are shown alongside one of these 16-bar LED readouts, which is really only providing a rough idea of the value you’re choosing. Usable, but not great, when you’re fine-tuning a compressor.

In theory, and I suppose in practice, the system works fine. Especially when the meters were showing auxiliary or FX send levels for each channel, it worked great – and I’ve had my days of desperately trying to peer at an LCD screen in bright daylight, so any improvement on that gets a big thumbs-up. But I struggled to relate to these LED readouts when it came to the DSP tweaking. My eyeballs weren’t instantly getting information that made sense – if that makes sense. I had to look closely to decipher just what the pretty green LED bars meant… not happy.

The good news is that I had a means to completely ignore the LED displays anyway.

NEED TO KNOW

  • PRICE

    $1,699 (inc GST)

  • CONTACT

    National Audio Systems:
    1800 441 400
    [email protected]

  • PROS

    • Connecting a PC hugely expands mix and control capabilities
    • Simple live recording with Capture
    • Record post- or pre- DSP
    • Handy-size footprint

  • CONS

    • Aux FX are all or nothing
    • Firewire ports getting rare as hen’s teeth

  • SUMMARY

    The smallest PreSonus StudioLive is a power-packet, with enough analogue i/o to get you through most small gigs. Simple LED feedback means daylight mixing isn’t a problem for this digital trouper, and its small size hides some impressive expandability across PCs and mobile devices.

STEP AWAY FROM THE DESK

PreSonus has really lathered on the software options for its StudioLive. Choose Capture for a simple recording system, open up the Virtual StudioLive console on a PC for fine control of each Fat Channel, tweak your mix on an iPad with StudioLive Remote, finish off your recording in the StudioOne DAW, and now, let artists control their own monitor mix with their iPhone using QMix.

QMix uses an iPhone or iPod Touch to give each artist in a band or ensemble total control over their own monitor mix. Using Presonus’ Universal Control on a laptop, an engineer can assign four individual mixes on the 16.0.2 (six on the 16.4.2, and 10 on the 24.4.2) that the artists can tweak to their heart’s or ear’s content.

You can set permissions for each i-device, so bandmates can’t mess with each other’s mix. You can turn it to landscape to access all the individual channels. Or use QMix’s most unique feature, one the world has been waiting for — the Wheel-of-Me. Want more of ‘Me’ (your channel)? Who doesn’t? Just turn the virtual thumbwheel to increase ‘Me’, and if ‘Me’ exceeds unity gain, QMix simply reduces all the other channels, letting you shine like you know you should.

CLANDESTINE RECORDING CONSOLE

You see, the 16.0.2 doubles as a fully-fledged studio recording desk through a Firewire 400 port on the console. I’ll go into more detail below, but for now I’ll explain that the software driver for the 16.0.2 creates a virtual console on your PC and all the DSP fat channel controls are available in familiar DAW-type plug-in GUI displays. Brilliant! So an ideal setup would be to have a laptop connected to the 16.0.2 where you can tweak the fat channels on-screen with all the finesse you desire. It’s way better than using the rotary encoders or, more to the point, the LED bar displays.

That Firewire connectivity allows the console to completely integrate with your DAW of choice, although PreSonus’ own software is plainly best. The StudioLive doesn’t become a control surface as such, but you can route all the DAW channels back into the console to be mixed down old-school style with all the mixer’s DSP goodies at your disposal. When you’re recording through the StudioLive you have the choice to make each channel post- or pre-DSP. You might be mixing a live concert and your DSP settings are hammering at a poor venue, but with the pre-DSP digital out selected, the recordings are raw and untouched.

BELLS, WHISTLES, FOGHORNS & SIRENS

A quick word about the software. You get supplied StudioOne Artist, which is the entry-level version of PreSonus’ own StudioOne DAW. S1 is an excellent program although users experienced with DAWs will soon notice the Artist version’s limitations and might consider upgrading. You also get Capture, which is so simple and basic – it’s excellent. Capture mimics a tape-based recording system, so you get to name your input channels and arm them for recording… and that’s it. It’s like having a couple of ADATs under the desk [sorry to those who have successfully blocked out the memory of ADATs for the last 10 years – Ed.]. The clever thing is that StudioOne will recognise and open Capture sessions, automatically dumping files into their own DAW channels where you can doodle with plug-ins and envelopes to your heart’s content.

From a live or production point of view the StudioLive’s greatest strength is the ability to save Scenes, Channels and FX presets, and most importantly, set-up time. No big deal, you might argue – but remember we’re talking about a highly spec’d digital console that’s about the size of a largish laptop. And you can be assured that the quality of the preamps, the DSP features and the actual build are all impressive.

A NORMAL LEARNING CURVE

But face it, it’s a digital desk and so it’s not intuitive. How can it be? Sure, it conforms to many of the standard operating methods that other digital consoles use, but the 16.0.2 StudioLive is offering a wealth of mixing and processing – and studio recording – power in a compact and affordable package. Not surprisingly that kind of package also comes with a learning curve, and it doesn’t matter if your ‘every day’ desk is a Digico SD8 or a Yamaha M7CL, every digital console has its own workflows and you need to spend time familiarising yourself with them, before jumping into any deep end.

The 16.0.2 is a nice compromise of digital capability and keeping things affordable/uncomplicated – at the expense of the more esoteric functions the big digital consoles can do. It’s a small, useful and rugged digital console that will have no problems finding a regular gig.
