Review: Audix Performance 40 Series

By many accounts, Audix’s previous wireless system was a bit of a joke. I never had the opportunity to use it, so I can’t chime in other to point out that it was called RAD 360… RAD 360, it sounds like a white shirted marketing guy trying to ollie in front of a crowd of high school skateboarders and falling flat on his face. Not the best look.

Breaking up the Shure/Sennheiser wireless duopoly is hard. Audix’s new Performance system wireless is a confidence builder. Atoning for previous miscues by packing in features not usually seen at this price point. For a start, the name has got all the right components — a number hierarchy, and Performance says ‘serious, but not ULX-D serious’ so we know where it should stand.

The base model OM2 dynamic mic single channel system I reviewed is just shy of $1000 at retail, sitting right in the same bracket as the base models in Sennheiser’s 100 G3 series and Shure’s SLX systems if you’re looking at the analogue UHF range. Not a lot has been happening in this space lately. Sennheiser has really got itself sorted with the 100, 300 and 500 ranges, putting more effort into its budget (XS) and high end (9000 series) offerings. Likewise, Shure’s more recent efforts have been the cheaper BLX and the more advanced offering in QLX-D. Perfect timing for a new entrant.

STEELY GRIP

There aren’t many greater differentiators between handheld wireless systems than the feel and weight of metal versus plastic. Audix’s H60 mic body feels just right with a completely metal shaft and hard plastic antenna nub. Unscrewing and screwing the handheld elements apart was a little dicey on the pre-production review model, but I’ve since had a go at the production models and they thread into each other with confidence.

Its small LED brightly displays the current frequency, group, channel and battery status in normal operation, switching to a simple mute notification when its power button is momentarily pressed. Powering the mic on and off requires a longer press of around three seconds, which is much safer than a switch system. There was a tiny handling noise click when you mute, and the signal takes a second to re-establish when un-muting, which is a common trait of wireless.

Perhaps the biggest feature of the handheld is its interchangeable capsules. Not just because you can swap them out but because Audix has made the thread and connection system compatible with Shure. There’s no alliance here, just Audix realising its customers like choice. There are more than a few bands touring with Audix’s OM7 capsules adapted to a Shure body via a Soundtools adaptor. The new capsules will let them fit straight on, and vice versa with a Beta 58 or KSM9 capsule screwing directly onto the Audix. As it stands, there are options for the OM2, OM5 and VX5 condenser, with an OM7 capsule coming soon.

Two AA batteries slide up into the body of the receiver like you’re slotting rounds into a rifle. As well as the mic readout, there’s a big battery indicator on the receiver’s front panel which is fairly easy to read, and battery life is supposed to be 10 hours. I never tested that theory as I have a habit of swapping out batteries before a show, and they never registered a drop over a couple of hours.

A dipswitch in the battery chamber lets you choose either 10mW or 40mW of power transmission to the receiver. Counterintuitively, less power can be a good thing. With bigger channel counts, it can stop different systems treading on each other’s toes with intermodulation frequency interruptions. That said, obviously having a 40mW option makes distance applications more stable. The cheaper Shure BLX, for instance, is set to 10mW only.

RECEIVING LINE

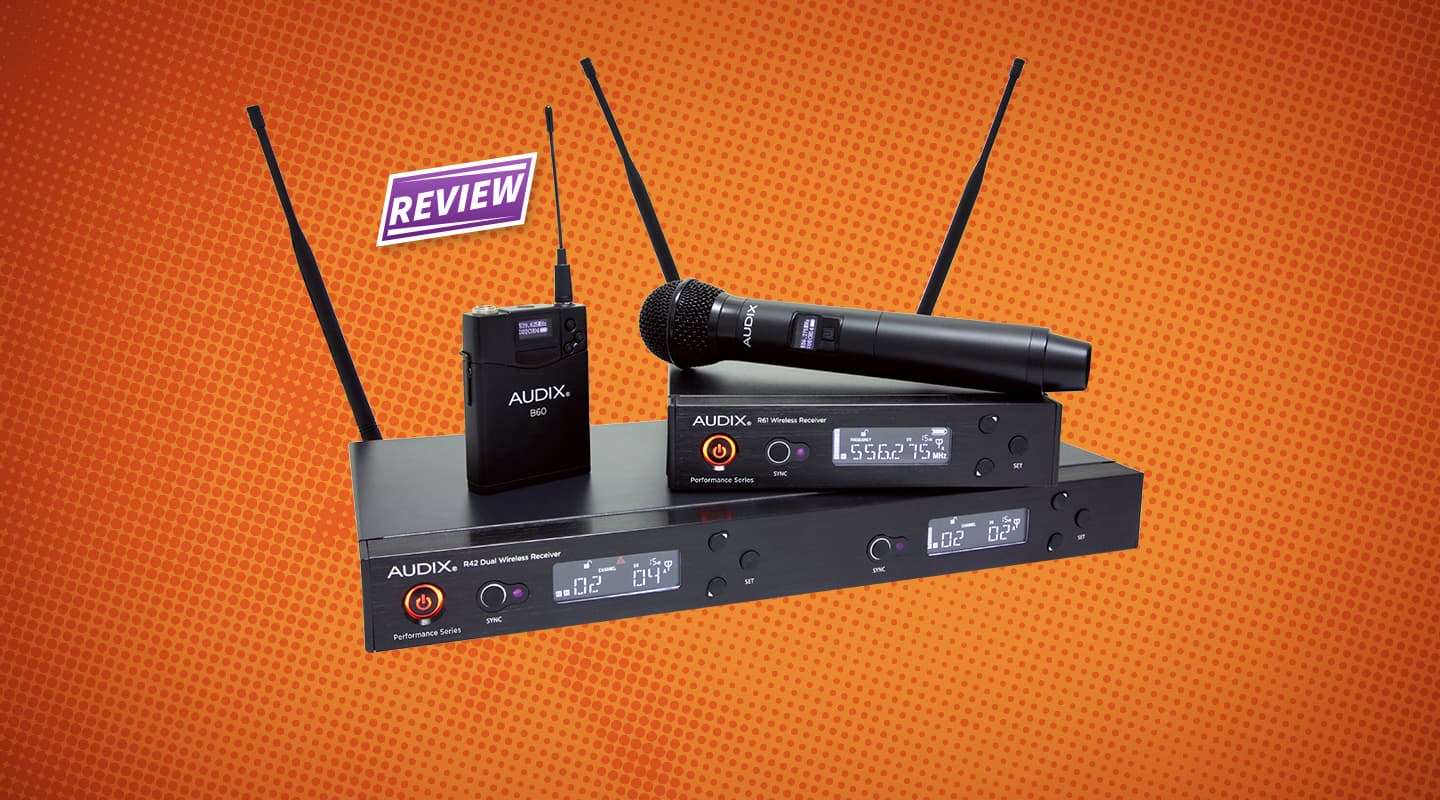

At the other end of the line, Audix has also made sure its receiver looks and feels solid too. There are two options, the single-channel R41 half-rack unit, or dual-channel R42 full-rack unit, which splits the antennas so you only need one set for both channels. Both units tune within a 32MHz wide frequency range, with two options — either between 522-554MHz or 554-586MHz. There is a range of 60 series receivers coming later in the year, which will cover the entire 64MHz at a 30% premium. It also doubles the recommended channel count to 16 and gives you 2560 tuneable frequencies, as opposed to the 106 pre-coordinated ones of the 40 series. The operating range also jumps from 90m to 137m in the clear blue sky. Both the handheld and bodypack transmitters already transmit over the entire 64MHz range, making it possible to just update the receivers if required.

Setting up is breezy, holding either of the up/down buttons sets off an auto scan function that takes about 30 seconds to scan the lot and settle on a group and channel. While that part was easy, it would be more comforting to get a readout of clear channels in the group to make sure I had enough to work with. It seemed to be unsure of which group was best; every scan would come up with a different result — one with 14 available frequencies, the next with only eight. It also wouldn’t tell me if any of those channels in that group were compromised. A channel list scan would be nicer, especially when setting up multiple units. Syncing the transmitter was super fast, faster than a Sennheiser 100 G3 system. Just drop the transmitter’s pants, hold it up to the infrared node, hit a button and you’re away.

You access the menu for further options by holding down the Set button. Frustratingly, after you select and change a parameter, it bounces you right out of the menu altogether, requiring you to press and hold again to adjust something else. It’d also be handy if there were some markings other than Sync and Set. A ‘Scan (Hold)’ marking on one of the Up/Down buttons would save a few questions.

The receiver also has squelch, with an adjustable threshold from 5dB to 45dB in 5dB steps. In practise, I found anything above 25dB severely limited my range, with the maximum setting persistently cutting out. Around 25dB was stable to about 15m, and 10dB let me go anywhere I wanted in a large auditorium. There’s also a Pilot Tone Squelch you can turn off if you’re feeling dangerous, and a button lock option if you’re not.
