NYBORG-12 SEM ANALOGUE SYNTHESISER

By

9 March 2015

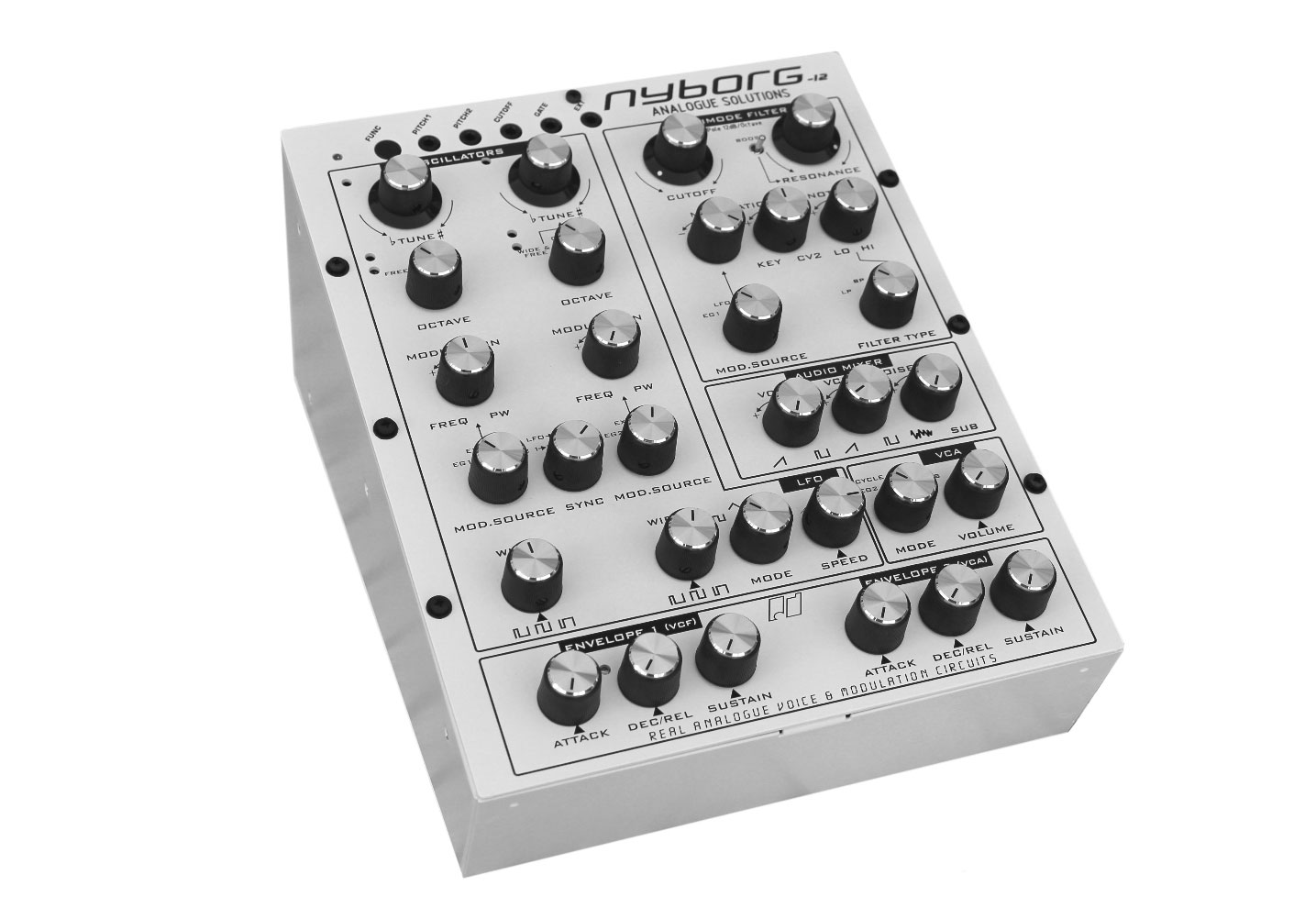

front-flat

British ‘boutique’ synth maker, Analogue Solutions has announced its all new Nyborg-12 is now shipping.

The Nyborg-12 is a Telemark SEM semi-modular synthesiser, in the style of Tom Oberheim’s original 1974-vintage SEM (Synthesizer Expander Module). It features a 2-Pole 12dB/Octave multimode filter, with Notch, LP (lowpass), BP (bandpass) and HP (highpass) settings, combined with a standalone monophonic synthesiser module, full steel/aluminium casing and real analogue voice and modulation circuitry.

Apart from its 16-bit DAC, MIDI and control voltage conversion, the entire synth is an homage to the days of analogue, without any digitally controlled oscillators, envelope generators, or CPU-stabilised/quantised circuits. AS has built this thing like a true vintage analogue synth, by hand, using 70s-designed circuitry, transistors and op-amps.

It has an abundance of potentiometers (aka dials), with aluminium-capped knobs that are dust-resistant and fully sealed. Featuring two Voltage-controlled Oscillators (with octave, modulation, frequency pass, and width); an LFO (low frequency oscillator) with triangle & square wave modulation and a mode switch for routing to CV2 (velocity controlled voltage) or S+H (sample & hold) to the Multimode Filter; a VCA (voltage-controlled amp) with EG2, Gate, Bypass or Cycle controls; an Audio Mixer (with VCO 1, VCO 2, Noise/Sub); and two Envelopes (VCF & VCA).  It also comes with external CV (EXT 1 & 2) sockets for Pitch1, Pitch2 (both VCO), CutOff (filter), Gate (to trigger EGs) or DAW integration; along with MIDI (In and Thru).

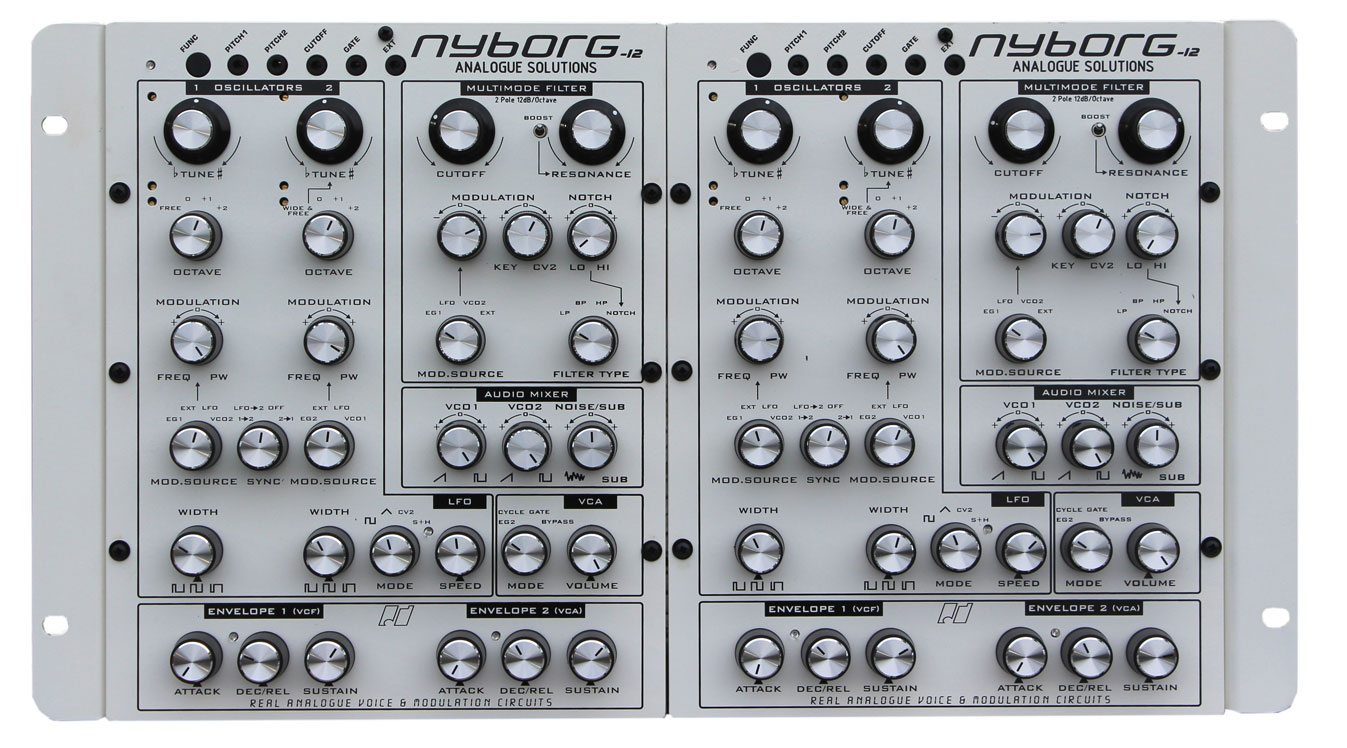

nyborg-rack-front

KEY FEATURES

  • Full rugged steel/aluminium case – no plastic mouldings
  • Good quality smooth potentiometers, fully sealed against dust
  • Good quality knobs with spun aluminium caps
  • High grade double sided circuit board
  • High Quality 16bit DAC for MIDI-CV conversion
  • Very stable MIDI to CV
  • Very stable analogue oscillators
  • Hand built by humans
  • True retro analogue voice and modulation circuits to give an authentic retro sound

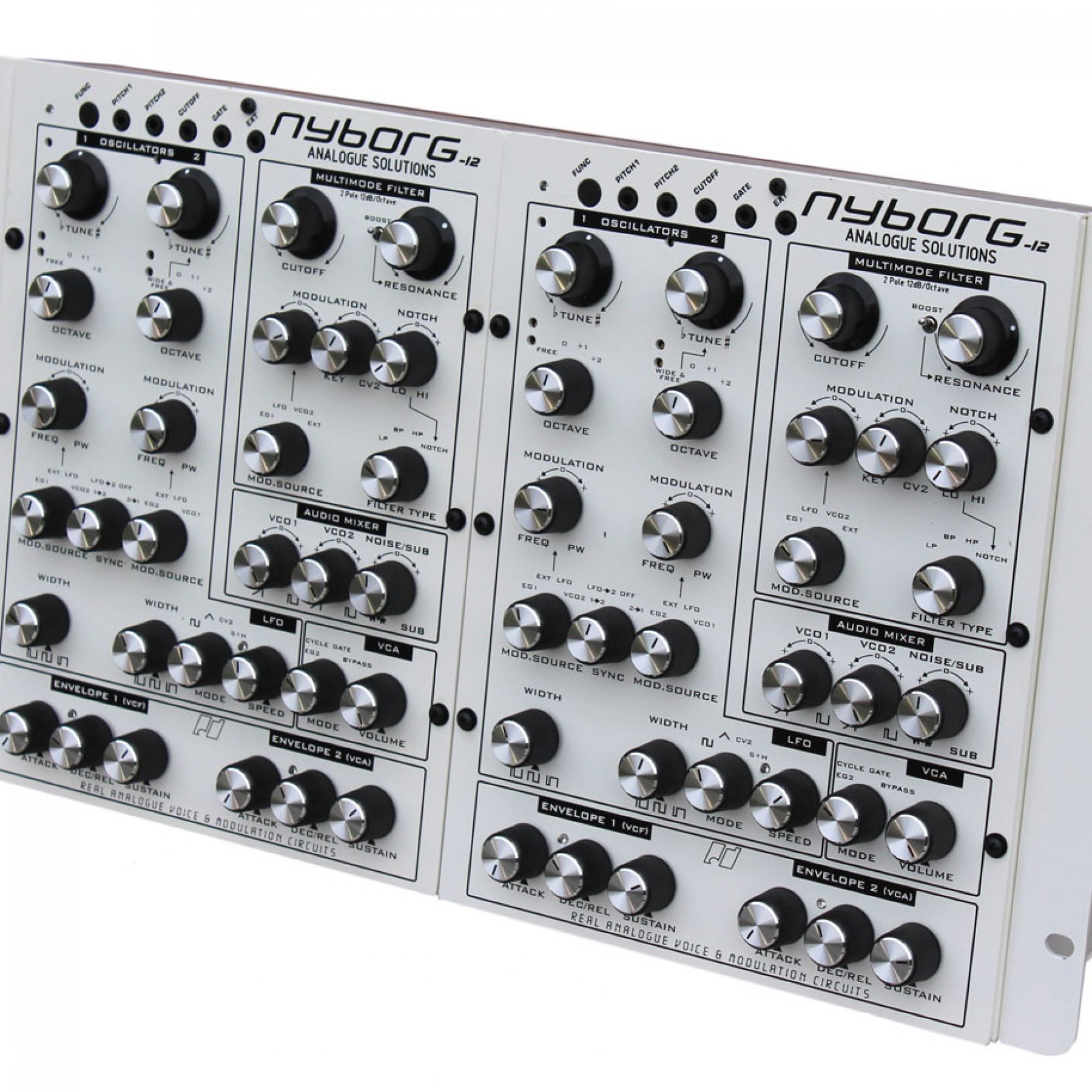

AS has said the synth can be configured as a vertical stand-alone monosynth, with optional wooden side panels for using it as a desktop device, or as a rack-mounted two-voice polysynth using optional matching rack ears that allow two Nyborg-12’s to be bolted together and poly-chained.

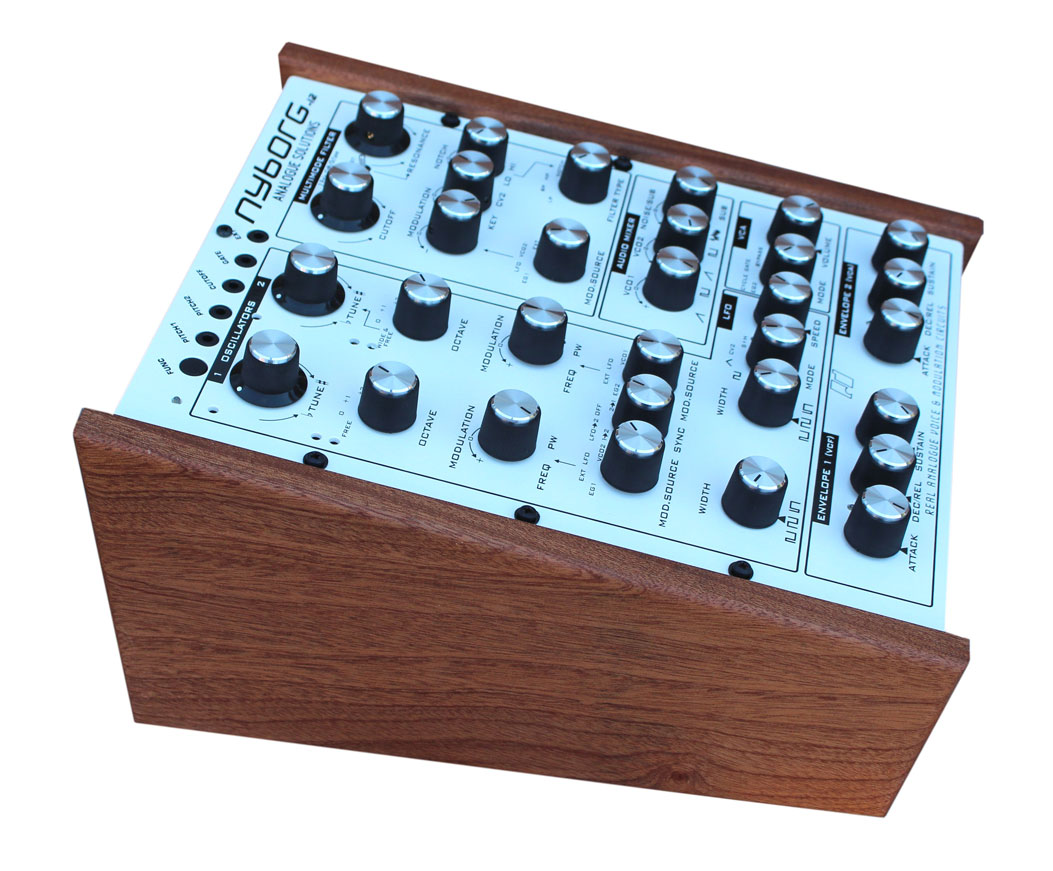

 What coloured polysynth do you see? White and Gold? Or Blue and Black?
What coloured polysynth do you see? White and Gold or Blue and Black?

PRICE AND AVAILABILITY

Nyborg-12 is available directly from Analogue Solutions for GBP£599.00 (plus tax and delivery) and will soon be available for purchase in Australia, with no word as yet on price.

For more info, check: analoguesolutions.com/nyborg-12
Australian Distributor: Audio Chocolate, Ph: (03) 9813 5877, Web: www.audiochocolate.com.au



Excerpts from Press Release
