AUDIO-TECHNICA’S SYSTEM 10

By Audio Technology

3 December 2014

Audio-Technica has released a new camera-mounted digital wireless system, that has a speedy setup for fast shooters – System 10.

If watching our recent Wireless Workshop live-stream (link to video), whet your appetite, you’ll be interested to hear that Technical Audio Group now has the System 10 in-store. It’s time to let the Christmas hinting commence.

The new wireless system features 24-bit/48kHz wireless operation, in a 2.4 GHz range. With a 12-hr internal rechargeable battery (receiver only), battery indicators on each display, and the ability to connect up to eight transmitters to a single receiver. Audio output is via a 3.5mm mini jack, with a switch selection between TRS balanced/unbalanced (dual mono), a separate headphone port and volume control.

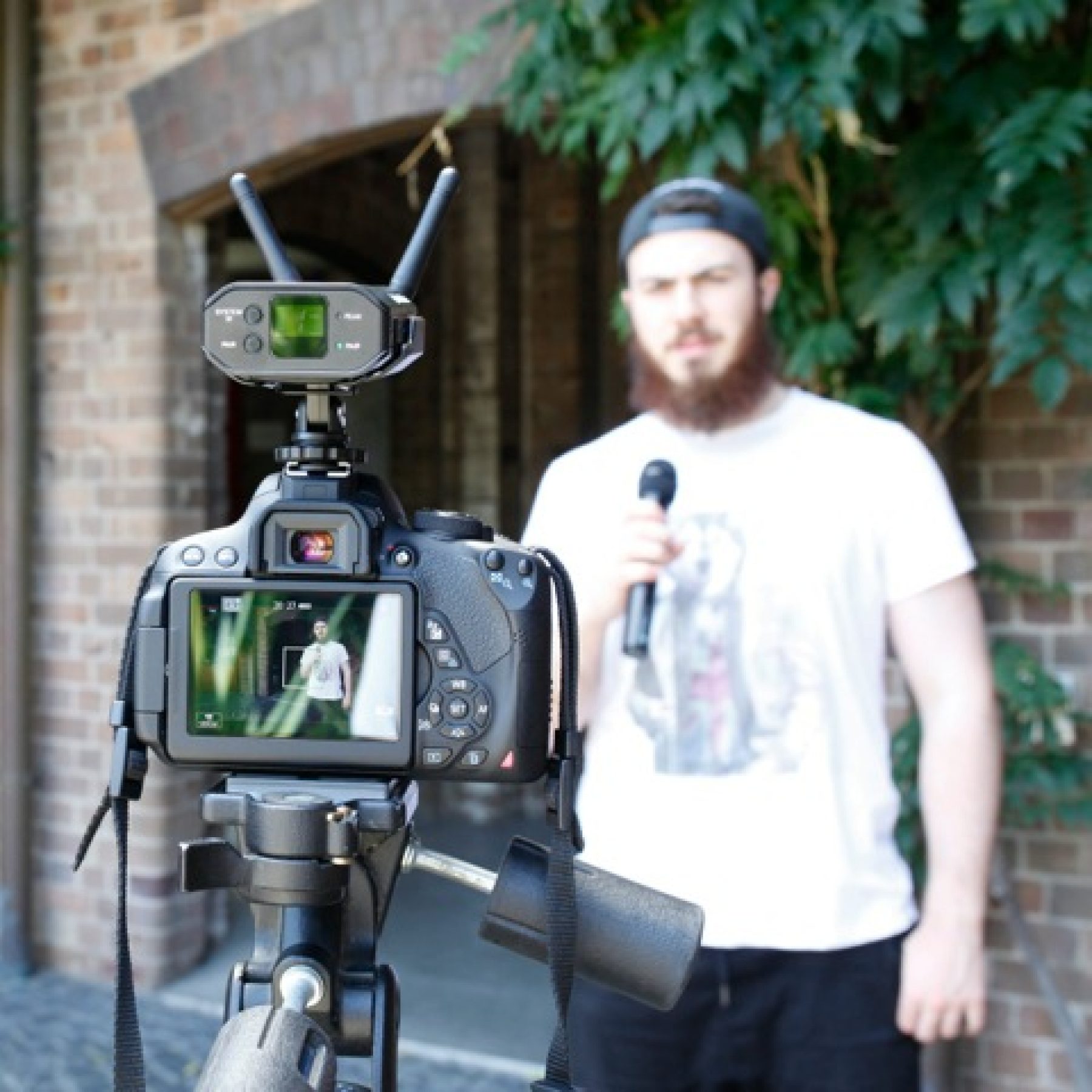

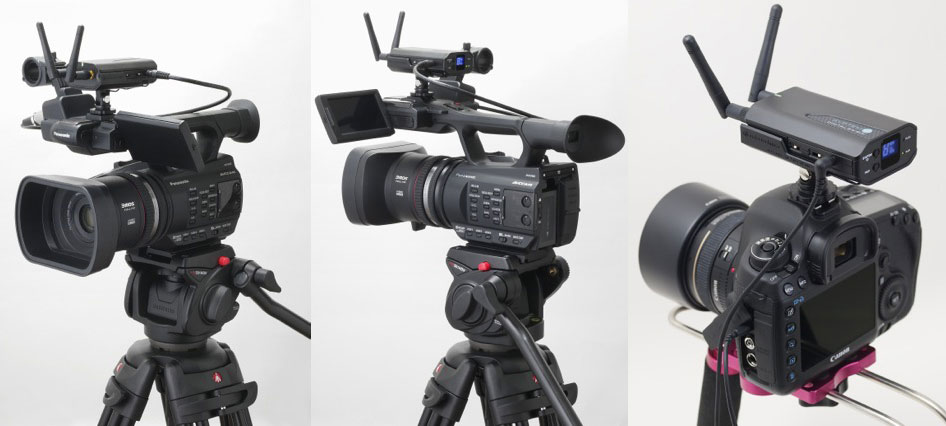

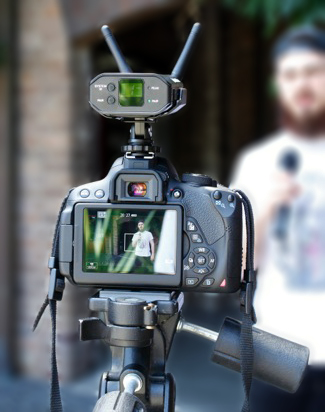

The receiver has multiple mounting options to accommodate most cameras or recording devices, and each of the handheld, lapel or body-pack configurations come with a receiver, transmitter and a hot shoe mount. In addition, the system is designed to automatically select channels, sync and setup, meaning not only will you be able to start filming quickly, but it should also stay free from TV interference.

Price and Availability

The System 10 camera-mount digital wireless system is now available in three configurations:

• ATW-1702 handheld transmitter system,with a price tag of A$499
• ATW-1701L lapel mic./body-pack system, with a price tag of A$599
• ATW-1701 body-pack system (no mic),with a price tag of A$499

Australian Distributions: Technical Audio Group, 43-53 Bridge Road, Stanmore NSW 2048. Ph. (02) 9519 0900. [email protected]

More Info: www.audio-technica.com.au

Specs:

• Operating Frequencies: 2.4 GHz ISM band
• Dynamic Range: >109 dB (A-weighted), typical
• Total Harmonic Distortion: <0.05% typical
• Operating Range:
  • 30 m (100′) radius, 60 m (200′) diameter typical
  • Open range environment with no interfering signals
• Operating Temperature Range:
  • 0° C to +40° C (32° F to 104° F)
  • Battery performance may be reduced at very low temperatures
• Frequency Response:
  • 20 Hz to 20 kHz
  • Depending on microphone type

RECEIVER SPECIFICATIONS

• Receiving System: Diversity (frequency/time/space)
• Maximum Output Level: 3.5 mm (1/8″), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
• Power Supply: 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
• Battery: Internal Battery: 3.7V rechargeable Li-ion battery
• Battery Life:
  • 12 hours
  • Depending on environmental conditions
  • Battery Charging Time: 4 hours 30 minutes
  • Depending on environmental conditions
  • Charging Temperature Range: 5° C to +35° C (41° F to 95° F)
• Dimensions: 56.0 mm (2.20″) W x 91.4 mm (3.60″) H x 27.8 mm (1.09″) D
• Net Weight: 105 grams (3.7 oz)
• Accessories Included: Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8″) stereo cable

BODY-PACK TRANSMITTER SPECIFICATIONS

• RF Power Output: 10 mW
• Spurious Emissions: Following federal and national regulations
• Input Connections:
  • Four-pin Locking Connector
  • Pin 1: GND, Pin 2: INST INPUT,
  • Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
• Batteries: Two 1.5V AA not included
• Battery Life:
  • >7 hours (alkaline)
  • Depending on battery type and use pattern
• Dimensions: 70.2 mm (2.76″) W x 107.0 mm (4.21″) H x 24.9 mm (0.98″) D
• Net Weight: 100 grams (3.5 oz) without batteries

HANDHELD TRANSMITTER SPECIFICATIONS

• RF Power Output:10 mW
• Spurious Emissions:Following federal and national regulations
• Batteries: Two 1.5V AA not included
• Battery Life:
  • >7 hours (alkaline)
  • Depending on battery type and use pattern
• Dimensions:
  • 254.8 mm (10.03″) long,
  • 50.0 mm (1.97″) diameter
• Net Weight: 280 grams (9.9 oz) without batteries
• Accessory Included: AT8456a Quiet-Flex™ stand clamp

Excerpts from PR
