Tascam Master Recorder

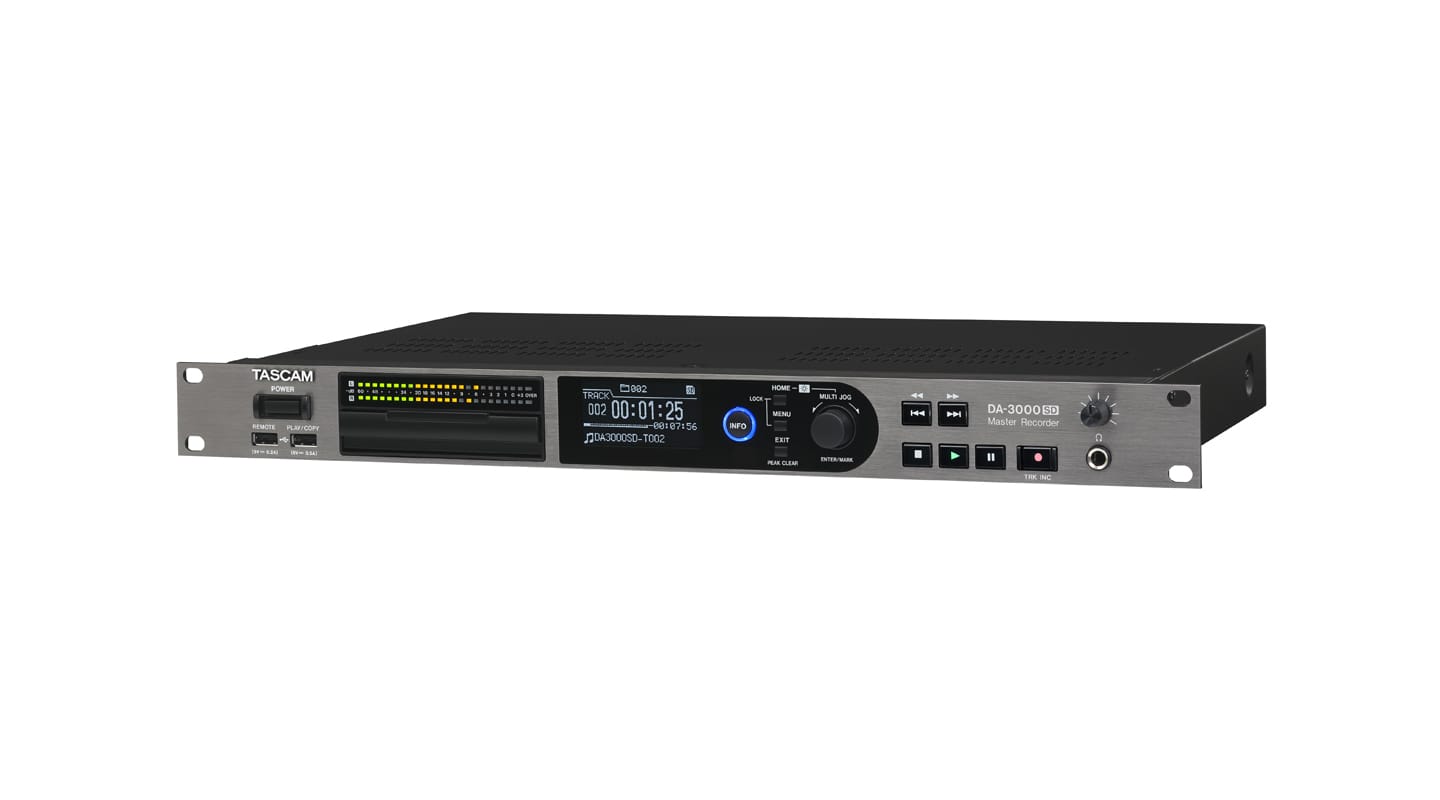

TASCAM has released the DA-3000SD 2-channel DSD/PCM Master Recorder with AD/DA Converter. Following in the footsteps of the original DA-3000, the new DA-3000SD adds support for high-capacity SD card media and user-focused enhancements to provide more control over the recording process.

Designed for recording, mastering, and monitoring, the DA-3000SD offers a rich feature set that makes the unit a terrific choice for recording studios of all sizes that rely on unprecedented quality. With its ability to meet the high-capacity recording requirements of recording studios and live sound engineers, the DA-3000SD offers support for up to 512GB SDXC card media—providing over 100 hours of 2-channel audio recording at 24-bit/192kHz, giving technicians the storage capacity to tackle extensive audio recording projects efficiently.

In response to user feedback, the DA-3000SD offers volume control over the internal oscillator for more precise calibration. Enhanced calibration capability, along with support for future-proof DSD recording, makes the DA-3000SD the ideal choice for use with reel-to-reel tape machines and audio applications where precise monitoring can make or break the project.

With its support for DSD (Direct Stream Digital), the DA-3000SD makes a terrific professional grade standalone recorder. By recording one’s audio as DSD or “1-bit” digital audio, the audio can be converted to any necessary PCM file format with the utmost accuracy. DSD captures the audio at a much higher resolution and dynamic range than PCM audio or bouncing files within a digital audio workstation, which then enables conversion to any needed PCM formats such as 24-bit/96kHz from the highest possible source quality. And as audio formats advance in the future, DSD audio ensures the archived audio can be reproduced in relevant formats without sonic compromise. Even when recording in PCM format, the audio captured has a much higher resolution and greater dynamic range than bouncing files within a DAW.

The DA-3000SD facilitates precise monitoring with dedicated volume control. Studio engineers of all caliber know that proper level-matching is crucial for making an accurate sonic analysis. To address this, the DA-3000SD now features a dedicated output volume control for better integration with one’s existing monitoring system.

Both recording and playback synchronization is possible by cascading multiple units, thus creating a DSD multitrack environment. By connecting eight DA-3000SDs, users can record up to 16 tracks simultaneously.

The DA-3000SD combines ultra-high-fidelity audio recording with user-focused enhancements to integrate seamlessly with one’s workflow. Whether the task involves providing two-track recordings after a recording session or live show, broadcast, multitrack recording, or any other professional audio application, the DA-3000SD is the ideal solution.

In addition to its key features, the new TASCAM DA-3000SD has a wealth of additional capabilities, including an auto file save function to prevent data loss in the unforeseen event of power loss and a panel lock feature for fail safe operation. With its comprehensive Input / Output capability for both analog and digital audio, the DA-3000SD can make itself at home in any studio environment. The unit supports analog audio with balanced and unbalanced connections, while digital audio for PCM is provided via AES-EBU and S/PDIF. Digital audio I/O for DSD is provided with SDIF-3/DSD-raw terminals. Additionally, the DA-3000SD features a port for USB memory, for convenient audio playback or mutual copying with SD cards. There is also a dedicated USB keyboard port—enabling one to connect a keyboard for folder/file name input and external control.

The DA-3000SD provides a wealth of convenience features for intuitive operation. This includes a highly visible 24-dot level meter that provides the clear visual feedback needed, with a brightness control to set it as bright or dim as one prefers. Further, the unit is equipped with a 128 x 64-dot OLED display with a wide viewing angle for high visibility.

With its compact 1RU rack mountable form factor, the DA-3000SD can be conveniently placed where it is most needed. In addition to being able to synchronize and cascade multiple DA-3000SD units together for clock synchronization and recording/playback timing synchronization, the DA-3000SD is ready to sync with Word Clock—thanks to its Word In/Out/Thru support, with Out and Thru being switchable. For even greater operational convenience, the DA-3000SD can be controlled via the included RC-10 remote for comprehensive integration with professional audio systems.

Paul Youngblood, Director of Product Marketing, commented on the new TASCAM DA-3000SD 2-channel DSD/PCM Master Recorder with AD/DA Converter, “The DA-3000SD builds upon the success of the original DA-3000 and, in the process, delivers more capability—making it a terrific choice for a wide range of audio archival and mastering functions. With support for SDXC card media and a rich assortment of I/O connectivity, this new recorder can integrate seamlessly into a wide range of production environments. I’m confident audio professionals will find much to like.”

For additional information about the DA-3000SD, visit the TASCAM website:

https://tascam.jp/int/product/da-3000sd/
